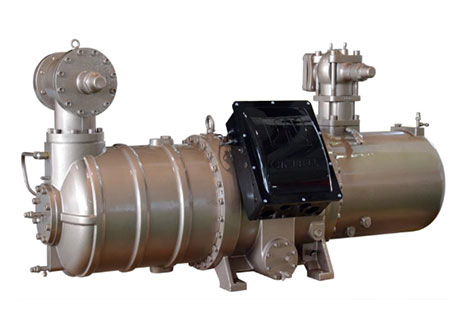

RC2-PLUS single-stage low ambient temperature air source heat pump

The RC2-PLUS single-stage low ambient temperature air source compressor launched by Hanbell is developed for cold areas with heating application demands. At present, it has 6 models. Compared with RC2 series, it not only has similar appearance, but also has the characteristics of high performance and large displacement.

Features
Model Specifications
Catalogue & Technical Manual
Drawing

The lowest suction saturation temperature can reach - 40℃, which is suitable for heating application of air source unit in severe cold environment；

With high oil separation efficiency, the oil discharge rate of compressor reduced

No external oil cooler to simplify the system application

Large single unit heating capacity, which is suitable for central heating projects and reduces the initial investment and space required to install the machine

Double electronic expansion valve is used to precisely control the temperature of the compressor, and the performance of the compressor is improved by about 10% compared to screw compressors during hearting process under the low ambient temperature standard working conditions.


RC2-PLUS Series

Model

Compressor

Motor

Lubricant filling

Weight

Strength test

Air flow
50HZ m3/h

Rotor  rotation speed
50Hz

VI value

Capacity regulation

Starting type

Type

Protection device

Voltage
V/50Hz

Insulation grade

L

Kg

Bar

Step

Stepless

RC2-510PLUS

508

2950r/min

3.5

25,50,
75,100

25~100

Y-?

3 phase 2 pole squirrel-cage inductor motor

PTC
+NTC

380

Level F

25

795

35

RC2-550PLUS

549

28

865

RC2-620PLUS

619

28

895

RC2-710PLUS

713

31

1179

RC2-830PLUS

825

31

1228

RC2-930PLUS

929

31

1253
